Exceptional print quality — PrecisionCore®
Heat-Free
technology and UltraChrome®
DL Inks deliver accurate colours,
smooth gradations, precise barcodes and sharp text
High-speed, on-demand colour labels — designed for mid-
to high-volume batch runs, print multiple labels with variable
data at speeds up to 12" (300mm) per second1
Reliable performance with PrecisionCore — built for
demanding applications, permanent printhead means fewer
interventions and low maintenance costs
High-yield 1.9 L total ink capacity2 — ideal for high-volume
batch runs, allowing for fewer interventions, low cost per milliliter
and low consumable waste
ColorWorks’ most advanced connectivity and remote
management tools — integrate large fleets with Epson
Cloud Solution PORT®3, cloud printing and optional Wi-Fi®
Powerful fleet productivity with Epson Cloud Solution PORT3
— remotely view printer status, ink consumption and operation
history
Seamless workflow integration — compatible with ZPL II®
,
major middleware, SAP®
, Windows®
, Mac®
and Linux®
; built-in
ESC/Label®
language
Durable, high-quality labels — UltraChrome DL Ink technology
produces stunning labels that resist smudging, smearing and
fading
High efficiency and low power consumption — PrecisionCore
Heat-Free technology enables efficient ink usage and low energy usage
Designed for use exclusively with
Epson ink packs*.

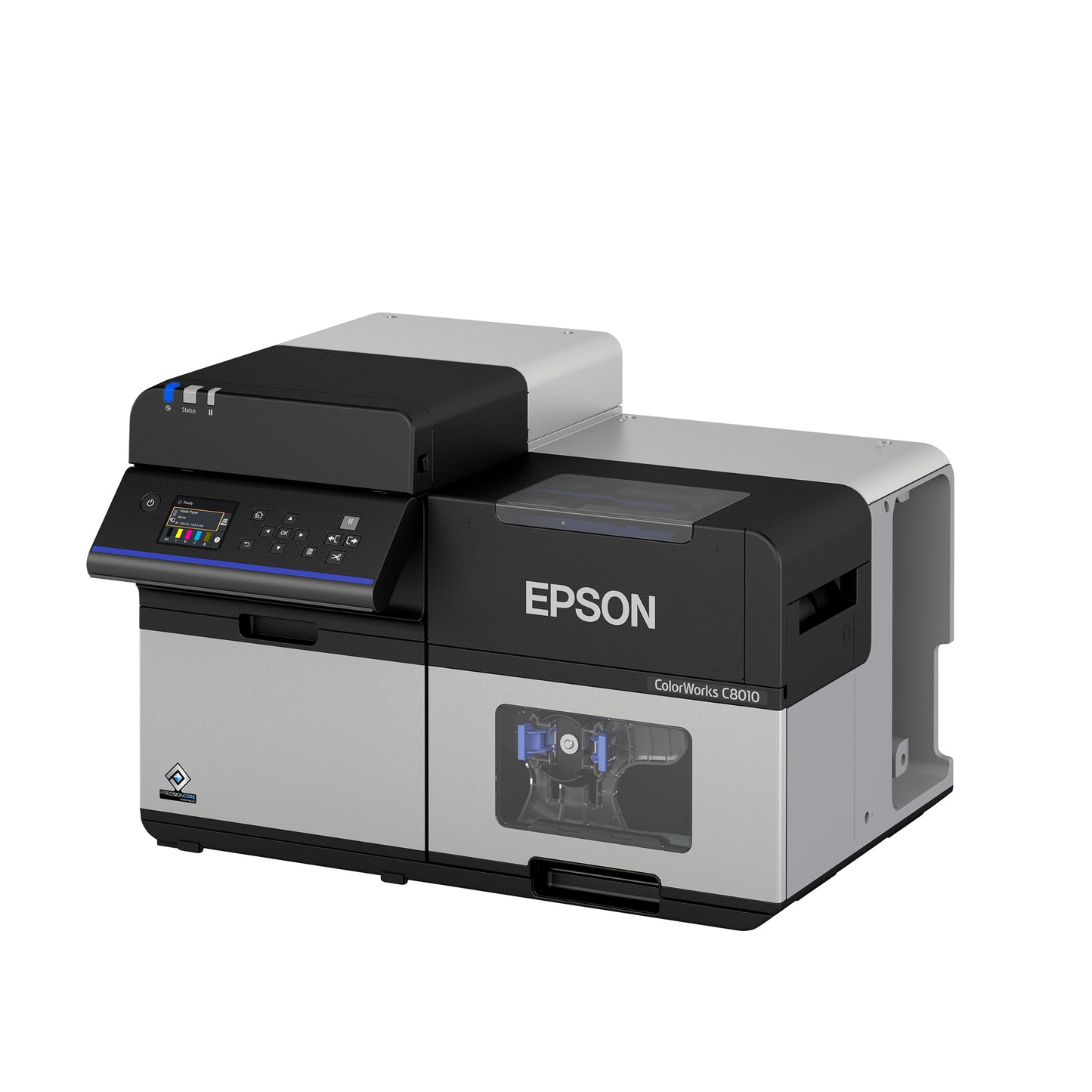

Printer
Print Method Line inkjet, dot matrix
Print Resolution 600 dpi x 1200 dpi
Print Speed Up to 11.8" per second (300 mm/sec)
Colour Adjustment Epson Preferred Color, Epson Standard,
Epson Vivid Colour
Media Dispense Type Auto cutter (scissor type), up to 1.5
million cuts
Printhead PrecisionCore printhead, permanent
Paper-Feeding Mechanism Life 500 km
Ink
Ink Type UltraChrome DL SJIC48P pigment ink
Ink Colors Cyan, Magenta, Yellow and Black (Gloss or Matte
Black Options)
Ink Pack Configuration Four (4) individual ink packs, 480 mL
each pack2
This printer is designed for use with genuine Epson packs only,
not third-party packs or ink*.
Media
Supported Media Types Die-Cut Label, Full-Page Label,
Continuous Label, Tag
Supported Media Constructions Plain Paper, Textured Paper,
Matte Paper, Synthetic, Glossy Paper, Glossy Film, High Glossy Paper
Die-Cut Label Gap 0.12" – 0.24" (3 mm – 6 mm)
Gap Sensor Position Adjustable; 0.12" – 2.20" (3 mm – 56 mm)
from left side; pitch: 0.04" (1 mm)
Black Mark Sensor Position Fixed position; approximately
0.49" (12.4 mm ) from left
Black Mark Width 0.75" (19 mm) or more from paper edge
Black Mark Length 0.16" to 1.0" (4 mm – 25.4 mm) with 0.16"
(4 mm) or more of white space around the black mark
Maximum Print Width 4.25" (108 mm)
Media Width
Internal Roll Media (Min. – Max.): 1.0" – 4.40"
(25.4 mm – 112 mm)
External Roll Media, Fanfold (Min. – Max.):
1.97" – 4.40" (50 mm – 112 mm)
Media Length (Min. – Max.): 0.31" – 40"
(8 mm – 1,016 mm)
Media Thickness (Min. – Max.): 3.30 mils – 23.62 mils
(0.084 mm – 0.600 mm)
Internal Roll Media
Media Core Inner Diameter: 3.0" (76.2 mm)
Media Maximum Outer Diameter: 8.0" (203.2 mm)
Connectivity
USB USB 3.0 (one port), USB 2.0 (one port)
Ethernet 1000Base-T/100Base-TX/10Base-T
Wi-Fi Optional Wi-Fi dongle available (OT-WL06)
General-Purpose I/O Port D-Sub 25
Print Utilities and Remote Management Tools
EpsonNet SetupManager
EpsonNet Config SE
Epson Device Admin
Epson Deployment Tool
PrinterSetting
Color Tone Matching Assistant
USB Printer Class Device Replacement
Epson Firmware Updater
Epson Cloud Solution PORT3
Production Monitor
WebConfig
General
Display 2.7" color LCD
Operating Systems Supported
Windows® 11
Windows 10 (32-bit/64-bit)
Windows 8.1 (32-bit/64-bit)
Windows Server® 2022
Windows Server 2019
Windows Server 2016
Windows Server 2012
Windows Server 2012 R2
OS X® 10.9.5 or later, macOS® 10.12 or later
CentOS® 7 (x86_64), Ubuntu 20.04 (x86_64)
Direct Command-Based Printing Zebra® ZPL II® native
language support, plus command extensions, to allow for
colorization of data; ESC/Label color command language;
SAP® Direct Printing
Power Supply AC Direct
Temperature
Operating: 41 °F to 95 °F (5 °C to 35 °C), 20% to 80% RH
Storage (When Ink Is Loaded and Charged): Gloss Black
Ink: 5 °F – 104 °F (-15 °C – 40 °C), up to 120 H; Matte Black Ink:
14 °F – 104 °F (-10 °C – 40 °C),
Power Consumption
Operating: 83.0 W
Standby: 3.3 W
Power Off: 0.4 W
Rated Voltage 100 V – 240 V
Rated Frequency 50 Hz – 60 Hz
Acoustic Noise Approx. 57 dB
EMI FCC Class A, ICES-003 Class A
76mm core
203.2mm max od
Media width 25.4 to 112mm (Printhead 108mm)
